Shackle
A shackle is a crucial hardware component used in various applications, including the installation of shades and sails. In the context of shade structures, shackles are used to secure the fabric to the supporting structure, ensuring stability and durability.
1. Purpose of Shackles in Shade Installations:
- Connection: Shackles are used to connect the shade fabric to anchor points or tensioning cables.
- Adjustability: They allow for adjustments in the tension and positioning of the shade fabric.
- Security: Shackles provide a secure and reliable fastening method that can withstand environmental stresses such as wind and weather.

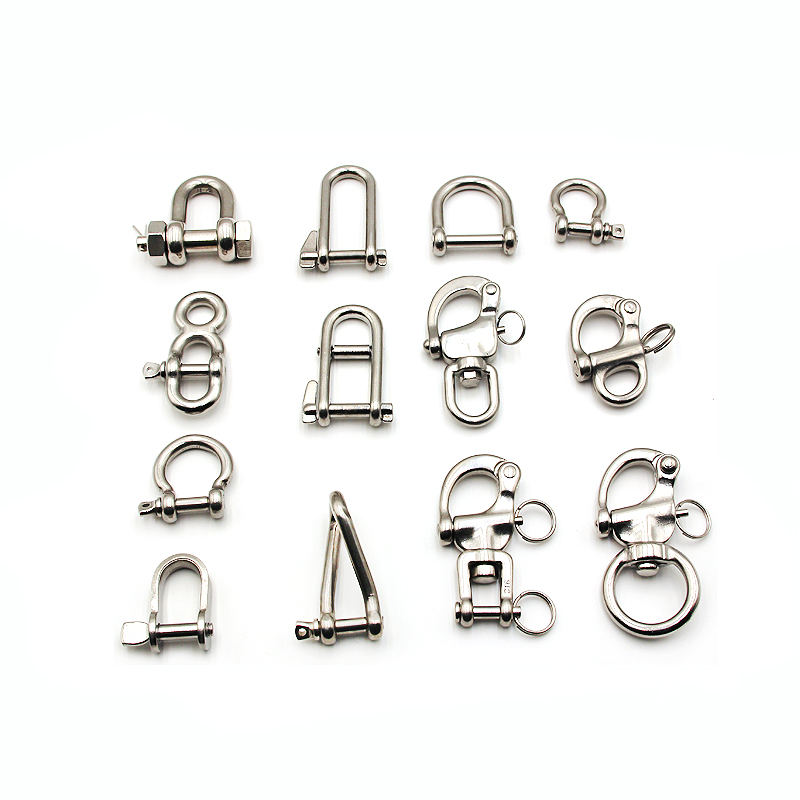

2. Types of Shackles:
- Bow Shackles (Anchor Shackles): These have a larger, rounded “O” shape which allows for a wider range of movement. They are useful when connecting components that need to pivot or move slightly.
- D Shackles (Chain Shackles): These have a “D” shape and are more restrictive in movement, providing a secure connection that limits side-to-side motion. They are often used where a stable, fixed connection is needed.
- Snap Shackles: These are designed for quick-release applications, allowing for fast and easy detachment. They are useful in situations where the shade may need to be removed or adjusted frequently.
- Twist Shackles: These have a 90-degree twist in the body, making them ideal for applications where the orientation of the connection points is perpendicular.
3. Materials:
- Stainless Steel: Offers high corrosion resistance, making it ideal for outdoor applications where the shackles will be exposed to the elements.
- Galvanized Steel: Provides good corrosion resistance at a lower cost than stainless steel. Suitable for less demanding environments.
- Marine Grade: Specifically designed for harsh marine environments, offering superior resistance to saltwater corrosion.
4. Specifications:
- Load Capacity: The shackle must be rated for the load it will bear, considering the weight of the shade fabric and the force exerted by wind.
- Size and Fit: The size of the shackle should match the dimensions of the connection points on the shade fabric and the supporting structure.
- Pin Type: Shackles come with different types of pins, including threaded pins, bolt-type pins, and captive pins, which should be selected based on the required security and ease of use.
Maintenance Tips:
- Regularly check for signs of wear or corrosion.
- Clean with fresh water to remove salt and debris if used in coastal areas.
- Apply a light coating of lubricant to the threaded pin to ensure smooth operation.
We using the right type of shackle for your shade installation ensures a secure, durable, and adjustable connection, providing peace of mind and enhancing the longevity of your shade structure.
