Wire Rope Cable

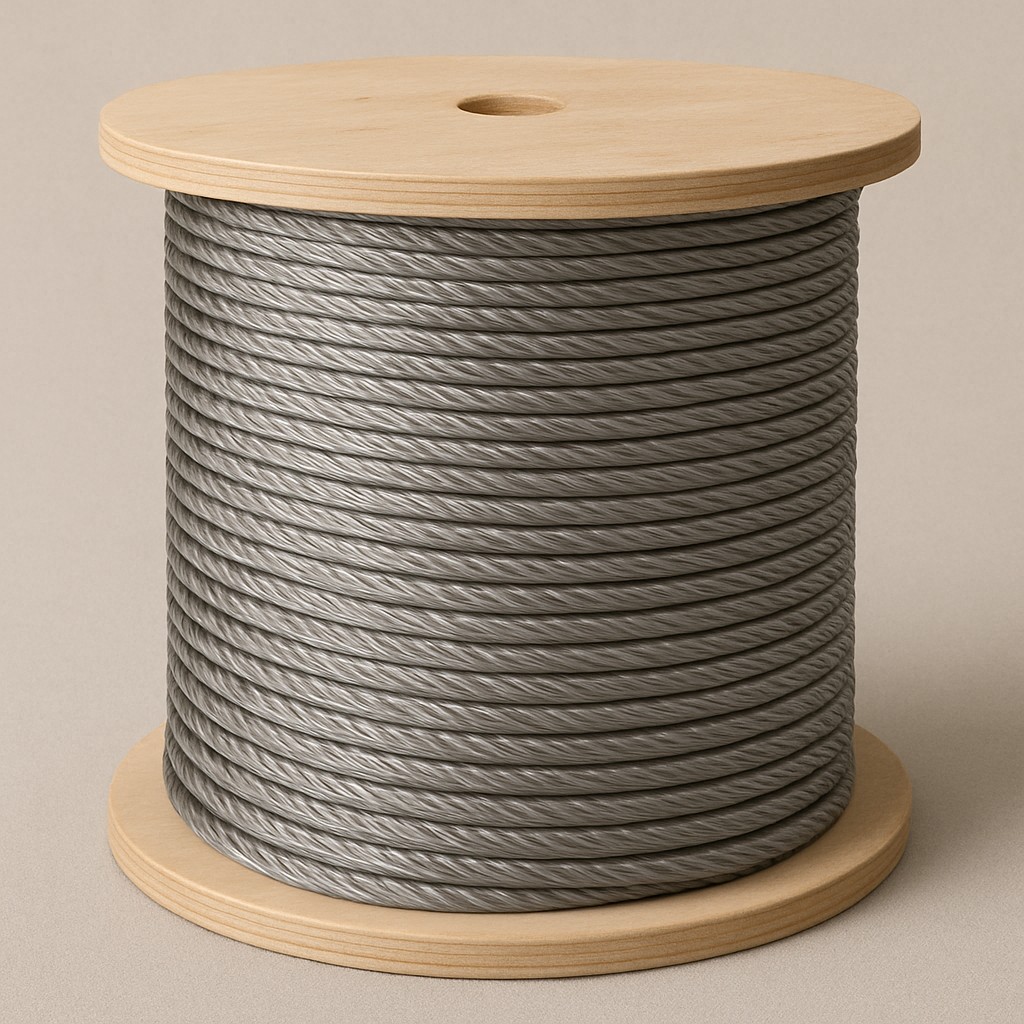

Stainless Steel Wire Rope :Cable

Stainless steel wire rope is a versatile and durable component widely used in various applications, including shade installations, due to its strength, corrosion resistance, and flexibility.

Stainless steel wire rope, its specifications, types, and applications, particularly in the context of shade structures:

1. Material: Made from stainless steel, typically grades 304,316 or 316L. Grade 316,316L offers superior corrosion resistance, making it ideal for marine and outdoor applications.
2. Strength: High tensile strength, capable of withstanding substantial loads.
3. Corrosion Resistance: Excellent resistance to rust and corrosion, suitable for harsh environments.
4. Flexibility: Can bend and flex without breaking, allowing for versatile applications.

Specifications:

1. Diameter: They are available in various diameters (e.g., 1/8″, 3/16″, 1/4″) or 4mm,6mm,8mm, etc. to match the required load capacity and application.
2. Construction: Composed of multiple strands twisted together. Common constructions include 7×7 (seven groups of seven strands) and 7×19 (seven groups of nineteen strands), offering different balances of strength and flexibility.
3. Coating: Can be bare or coated with materials like PVC for additional protection and ease of handling.
4. Breaking Strength: The maximum load the wire rope can handle before failure, measured in pounds (lbs) or kilonewtons (kN).

Types of Stainless Steel Wire Rope:

1. 1×19 Construction

• Flexibility: Low Flexibility: Provides a rigid and sturdy support, ensuring the shade structure maintains its shape and tension.
• Strength: High tensile strength due to its construction, making it suitable for load-bearing applications.
• Common Use: Ensure that all fittings and terminals used with the 1×19 wire rope are compatible with its diameter and construction to maintain strength and integrity.

2. 7×7 Construction:
   • Flexibility: Medium flexibility.
   • Strength: Good strength.
   • Common Use: General-purpose applications, including shade installations.
3. 7×19 Construction:
   • Flexibility: Higher flexibility.
   • Strength: Slightly less than 7×7 but more flexible.
   • Common Use: Applications requiring more flexibility, such as pulley systems and complex rigging.
4. Coated Wire Rope:
   • Material: PVC or nylon coating.
   • Advantages: Provides additional corrosion protection, reduces abrasion, and makes handling easier.
   • Common Use: Areas with higher exposure to corrosive elements or where the rope will be handled frequently.

Applications in Shade Installations:

1. Tensioning Systems: Used to create tension in shade sails and canopies, ensuring the fabric remains taut and secure.
2. Support Structures: Acts as support for awnings and other shade structures, distributing loads evenly.
3. Rigging: Employed in the rigging of retractable awnings and adjustable shade systems.
4. Anchoring: Used to anchor shades to fixed points, providing stability and resistance to wind loads.

Recommended Maintenance:

• Clean with fresh water periodically to remove salt and debris, especially in coastal areas ,where your located such as Pattaya, Hua Hin Krabi, Phang-Nga.
• Inspect for fraying, kinks, or corrosion and replace as needed.

Ace of Shades Asia, we selected appropriate stainless steel wire rope to match our product and your accommodation installation position.
