Eye Bolt & Eye Nut

Eye Bolts and Eye Nuts

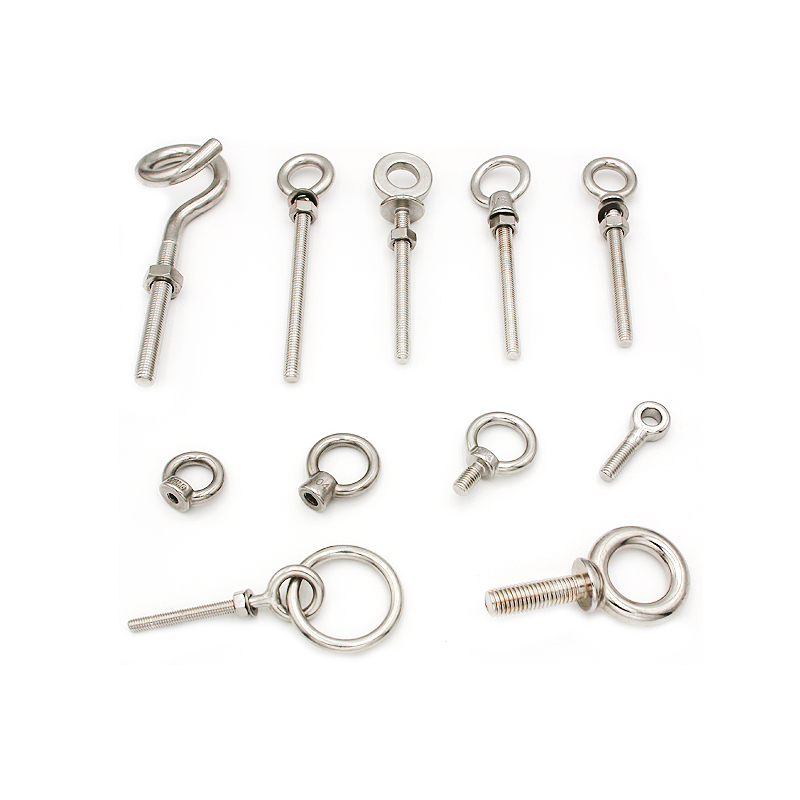

Eye bolts and eye nuts are essential components used in various lifting, rigging, and securing applications

Eye Bolts

Eye bolts are threaded bolts with a loop or “eye” at one end. They are used for attaching a securing eye to a structure, which can then be used to anchor a rope, cable, or chain.

1. Material: Commonly made from steel, stainless steel, or galvanized steel for corrosion resistance.
2. Thread Type: Available in various thread types and lengths to fit different applications.
3. Load Capacity: Rated for specific load capacities, which must be adhered to for safety.

Types of Eye Bolts:

1. Shoulder Eye Bolts:
   • Have a shoulder or collar between the eye and the threads.
   • Designed for angular loads (loads applied at an angle).
   • Provide extra strength and stability.
2. Straight Eye Bolts:
   • Lack a shoulder and are intended for vertical (straight-line) loads.
   • Not recommended for angular loads.
3. Lag Eye Bolts:
   • Feature a wood screw thread, designed for screwing into wood.
   • Commonly used in lighter-duty applications.
4. Machine Eye Bolts:
   • Have a machine screw thread, designed for use with nuts or threaded holes.
   • Used in heavy-duty applications.

Eye Nuts

Eye nuts are similar to eye bolts but have a threaded hole instead of a threaded shaft. They are screwed onto the end of a bolt or threaded rod to create a lifting or securing point.

1. Material: Typically made from steel, stainless steel, or galvanized steel.
2. Thread Size: Available in various sizes to match the corresponding bolt or rod.
3. Load Capacity: Also rated for specific load capacities.

Types of Eye Nuts:

1. Standard Eye Nuts:
   • Feature a single loop or “eye” for attaching lifting equipment.
   • Used for lifting, rigging, or securing loads.
2. Collared Eye Nuts:
   • Have a collar that provides extra strength and stability.
   • Suitable for heavier loads and more demanding applications.

Applications:

1. Lifting and Rigging:
   • Used in conjunction with cranes, hoists, and lifting equipment to lift heavy loads safely.
2. Securing Loads:
   • Anchoring points for ropes, cables, and chains in various securing applications.
3. Construction:
   • Utilized in construction projects for securing scaffolding, equipment, and materials.
4. Marine and Industrial:
   • Commonly used in marine and industrial environments due to their strength and corrosion resistance.

Our Considerations to use eye Bolts and Eye Nuts:

1. Load Rating: we always use eye bolts and eye nuts within their specified load ratings to ensure safety.
2. Material Selection: We choose the appropriate material based on the environmental conditions (e.g., stainless steel for corrosive environments).
3. Installation: We ensure proper installation, including using washers and nuts as needed, and verify that the eye bolt or eye nut is securely fastened.
4. Inspection: We regularly inspect eye bolts and eye nuts for signs of wear, corrosion, or damage, and replace as necessary.

We using the appropriate eye bolts and eye nuts ensures safe and reliable lifting, rigging, and securing operations with your shade. Always adhere to load ratings and installation guidelines to maintain safety and performance.
